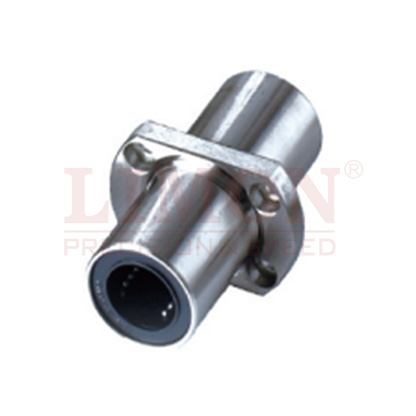

LMHC Series - Linear Bearing

- Linear Bearing -


LMHC Series

LMHC Series

Linear bearings are bearing elements for translation type motion. As in the case of rotary bearings, a distinction is drawn as to whether the forces occurring are transmitted by means of rolling or sliding elements. Each linear design has particular characteristics that make it especially suitable for particular bearing arrangements.

1. enable high precision linear motion on round shafts
2. sustain heavy loads with low noise and high stiffness
3. perform under almost any environmental conditions and load capacities to satisfy a wide range applications

Linear bearings are widely used in electronic equipment, pull tester and the digital three-dimensional coordinate measuring device, such as precision equipment, as well as multi-axis machine tools, press, tool grinder, automatic gas cutting machine, printer, card sorting machine, food packaging machines and other industrial machinery sliding components.


Description




Part No. Main Dimensions and Tolerance Eccentricity Basic Load Rating CN Basic Load Rating CoN Weight (g)
Seal Type  Ball  Circuit dr (mm) Tolerance
(um)
D (mm) tolerance
(um)
L
±0.3
(mm)
tolerance
(um)
 I
(mm)
Dl (mm) W
 (mm)
H
 (mm)
A
 (mm)
F (mm) dlxd2xh (mm)
LMHC6UU 4 6 0
-10
12 0 35 ±300 15 28 18 5 20 . 3.5x6x3.1   323 529 28
LMHC8UU 4 8 15 -13 45   20 32 21 5 24 . 3.5x6x3.1   431 784 47
LMHC10UU 4 10 19   55   24.5 40 25 6 29 . 4.5x7.5x4.1 15 588 1100 90
LMHC12UU 4 12 21 0 58 -200 25.5 42 27 6 32 - 4.5x7.5x4.1   813 1570 102
LMHC13UU 4 13 23 -16 61   27.5 43 29 6 33 . 4.5x7.5x4.1   813 1570 123
LMHC16UU 5 16 28   70   32 48 34 6 31 22 4.5x7.5x4.1   1230 2350 182
LMHC20UU 5 20 0
-12
32   80 -300 36 54 38 8 36 24 5.5x9x5.1   1400 2740 247
LMHC25UU 6 25 40 0 -19 112 52 62 46 8 40 32 5.5x9x5.1 20 1560 3140 525
LMHC30UU 6 30 45   123   56.5 74 51 10 49 35 6.6x11x6.1   2490 5490 645
