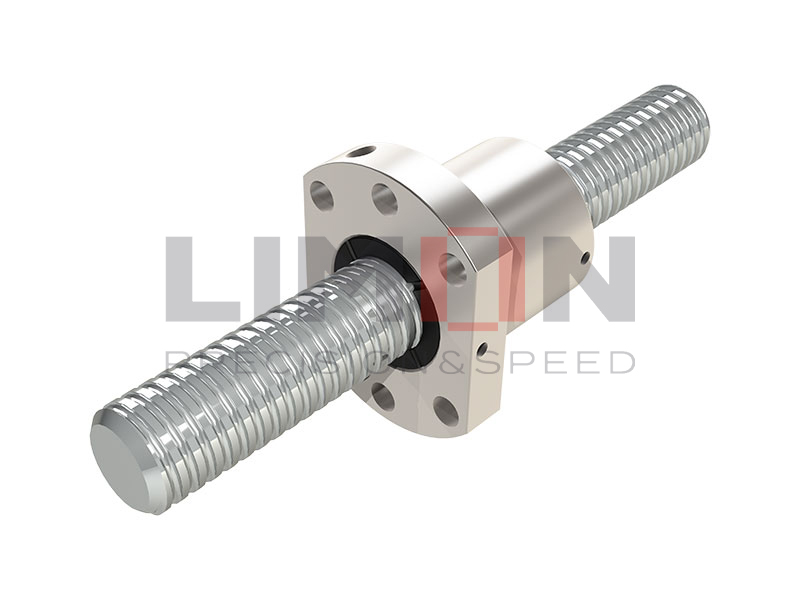

SFU Ball Screw Nut
Ball Screw Nut
SFU Ball Screw Nut
SFU Series
Applicable industries：
Heavy load industry, Automation industry, Semi-conductor industry, Industrial machine, Medical industry, Green energy industry, Machine tool, Automated storage and retrieval system and etc.
Features:
(1) High Reliability
LIMON applies stringent quality control standards on every production process.With proper lubrication and use, trouble-free operation for an extended period of time is possible.
(2) Small friction & Smooth Operation
The high efficiency of ball screw is vastly superior than conventional screws. It takes less than 30% torque to make the linear motion into rotary motion.
(3) High Rigidity and Preload
The ball screw of LIMON is designed with Gothic arch groove, which makes the screw easy to rotate even using minimum axial play. To make the rigidity more appropriate to using condition, you can change the preload between one or two screw nuts to reduce axial play.
(4) High durability
(5) Strong dust-proof
Quote Now
Download Catalog
Description
| Circulation type | Model | Characteristic | |
| Single Nut | Double Nuts | ||
| Internal Circulation type | SFK SFU SFI SCI | DFU DFI | •Dedicated diameter of screw takes only little space. •Applicable to those with smaller lead / the outside diameter of the screw |
| External Circulation type | SFV XFV | DFV | •Economy •Applicable to larger lead and diameter. •Applicable for high loading purpose. |
| End-caps Circulation type | SFS SFY | DFS | •Suitable for high speed positioning |

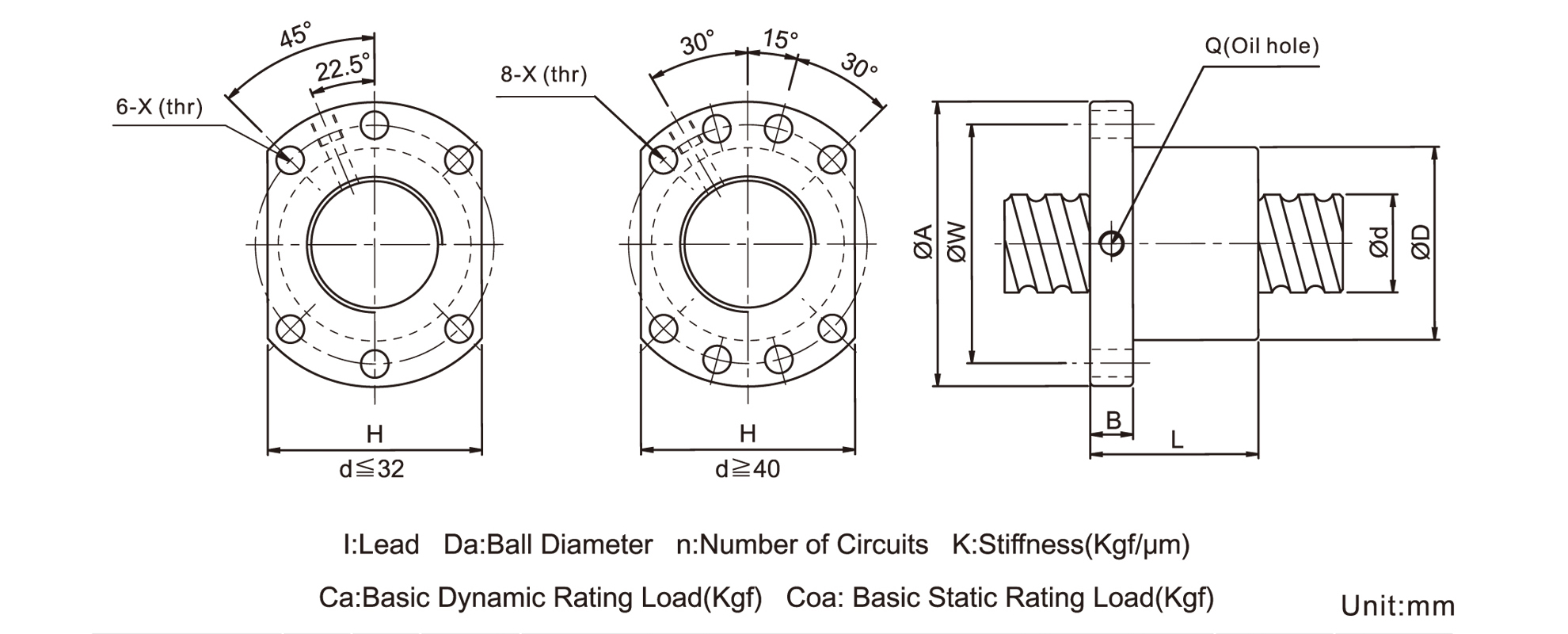

Size Table of SFU Screws
Model No. | d | l | Da | Dimension | Load Rating | ||||||||||
D | A | B | L | W | H | X | Q | n | Ca(kgf) | Coa(kgf) | |||||
☆ | SFU 1204-3 | 12 | 4 | 2.5 | 24 | 40 | 10 | 40 | 32 | 30 | 4.5 | M6x1 | 1×3 | 415 | 709 |
SFU 1604-3 | 16 | 4 | 2.381 | 28 | 48 | 10 | 36 | 38 | 40 | 5.5 | M6x1 | 1×3 | 488 | 940 | |
☆ | SFU 1605-3 | 5 | 3.175 | 28 | 48 | 10 | 42 | 38 | 40 | 5.5 | M6x1 | 1×3 | 666 | 1143 | |
☆ | SFU 1605-4 | 5 | 3.175 | 28 | 48 | 10 | 50 | 38 | 40 | 5.5 | M6x1 | 1×4 | 1127 | 2288 | |
☆ | SFU 1610-3 | 10 | 3.175 | 28 | 48 | 10 | 57 | 38 | 40 | 5.5 | M6x1 | 1×3 | 909 | 1848 | |
SFU 2004-3 | 20 | 4 | 2.381 | 36 | 58 | 10 | 42 | 47 | 44 | 6.6 | M6x1 | 1×3 | 541 | 1187 | |
☆ | SFU 2005-3 | 5 | 3.175 | 36 | 58 | 10 | 42 | 47 | 44 | 6.6 | M6x1 | 1×3 | 749 | 1495 | |
☆ | SFU 2005-4 | 5 | 3.175 | 36 | 58 | 10 | 51 | 47 | 44 | 6.6 | M6x1 | 1×4 | 1268 | 2991 | |
SFU 2504-3 | 25 | 4 | 2.381 | 40 | 62 | 10 | 42 | 51 | 48 | 6.6 | M6x1 | 1×3 | 605 | 1534 | |
☆ | SFU 2505-3 | 5 | 3.175 | 40 | 62 | 10 | 42 | 51 | 48 | 6.6 | M6x1 | 1×3 | 839 | 1935 | |
☆ | SFU 2505-4 | 5 | 3.175 | 40 | 62 | 10 | 51 | 51 | 48 | 6.6 | M6x1 | 1×4 | 1450 | 3872 | |
☆ | SFU 2510-3 | 1 | 4.732 | 40 | 62 | 10 | 70 | 51 | 48 | 6.6 | M6x1 | 1×3 | 1427 | 2771 | |
☆ | SFU 2510-4 | 10 | 4.762 | 40 | 62 | 12 | 85 | 51 | 48 | 6.6 | M6x1 | 1×4 | 2415 | 5543 | |
☆ | SFU 3205-4 | 32 | 5 | 3.175 | 50 | 80 | 12 | 52 | 65 | 62 | 9 | M6x1 | 1×4 | 1604 | 5103 |
SFU 3210-3 | 10 | 6.35 | 50 | 80 | 12 | 74 | 65 | 62 | 9 | M6x1 | 1×3 | 2319 | 4575 | ||
SFU 3210-4 | 10 | 6.35 | 50 | 80 | 12 | 90 | 65 | 62 | 9 | M6x1 | 1×4 | 3924 | 9152 | ||
SFU 4005-4 | 40 | 5 | 3.175 | 63 | 93 | 14 | 55 | 78 | 70 | 9 | M8x1 | 1×4 | 1786 | 6512 | |
SFU 4010-3 | 10 | 6.35 | 63 | 93 | 14 | 71 | 78 | 70 | 9 | M8x1 | 1×3 | 2610 | 5834 | ||
SFU 4010-4 | 10 | 6.35 | 63 | 93 | 14 | 93 | 78 | 70 | 9 | M8x1 | 1×4 | 4417 | 11669 | ||
SFU 5010-4 | 50 | 10 | 6.35 | 75 | 110 | 16 | 93 | 93 | 85 | 11 | M8x1 | 1×4 | 4947 | 15488 | |
SFU 6310-4 | 60 | 10 | 6.35 | 90 | 125 | 18 | 98 | 108 | 95 | 11 | M8x1 | 1×4 | 5586 | 20417 | |
SFU 6320-4 | 20 | 9.525 | 95 | 135 | 20 | 149 | 115 | 100 | 13.5 | M8x1 | 1×4 | 9397 | 28512 | ||
SFU 8010-4 | 80 | 10 | 6.35 | 105 | 145 | 20 | 98 | 125 | 110 | 13.5 | M8x1 | 1×4 | 6219 | 26049 | |
SFU 8020-4 | 20 | 9.525 | 125 | 165 | 25 | 154 | 145 | 130 | 13.5 | M8x1 | 1×4 | 10665 | 38018 | ||
Note:with sign ☆ can poduce left helix | |||||||||||||||
