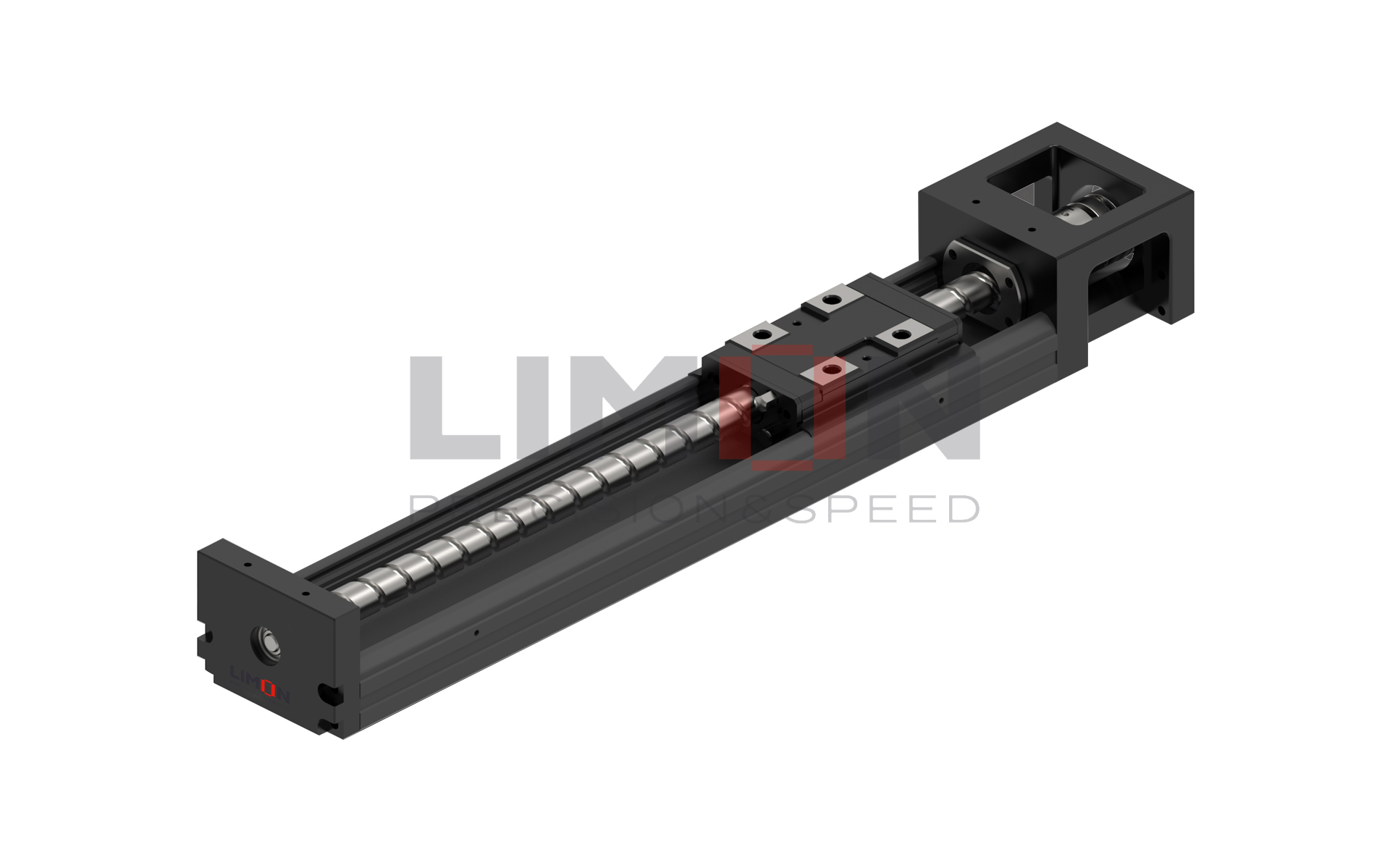

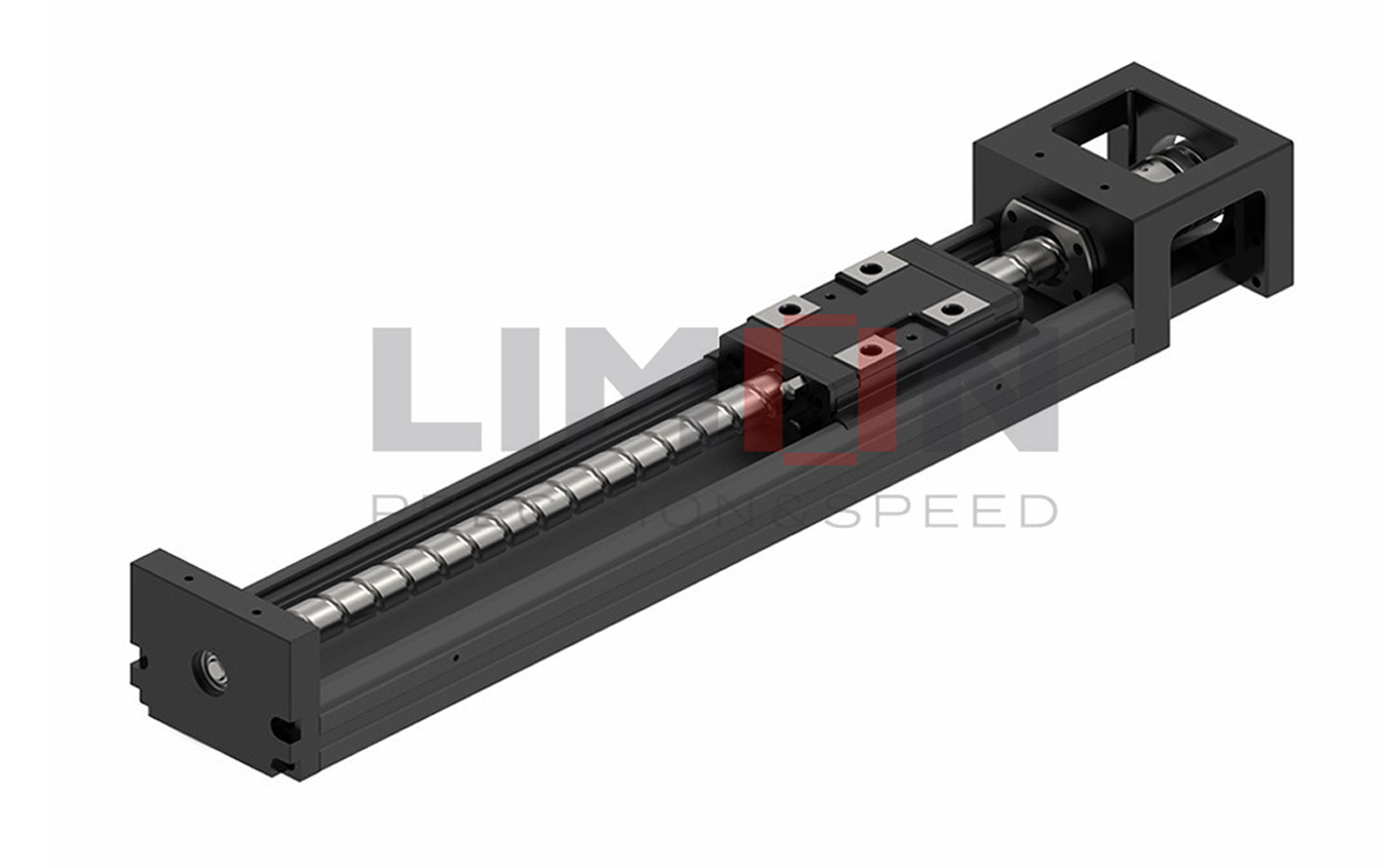

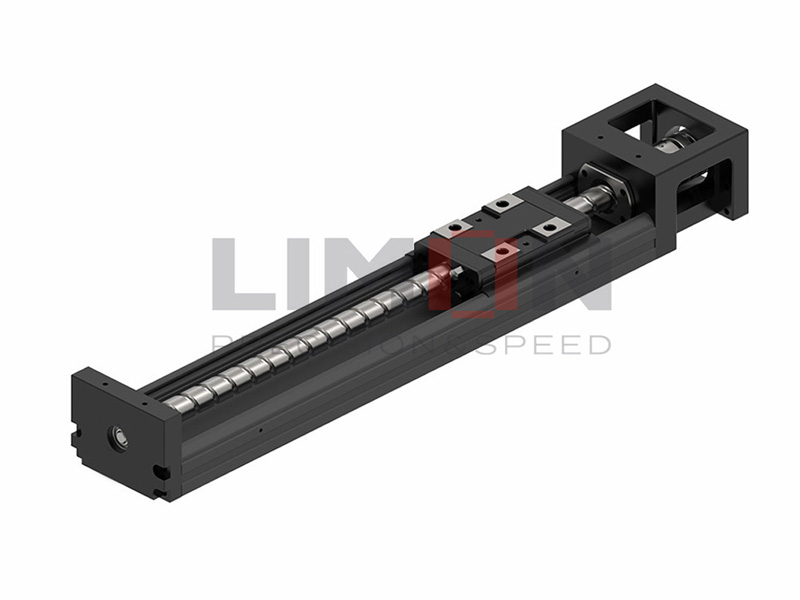

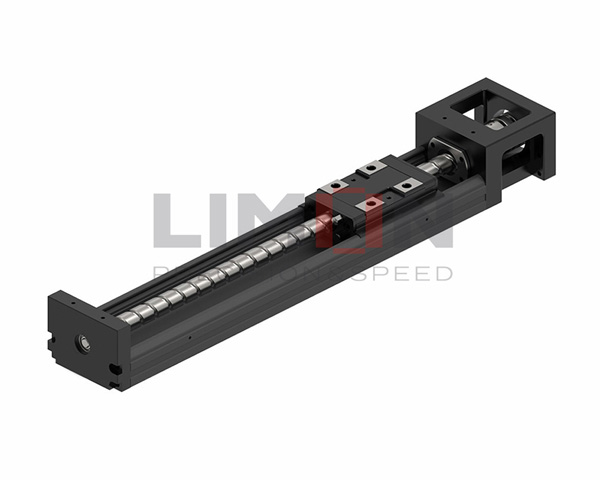

KS Series Overview

KS Series Basic Info

• Model Numbers: KS40/50/60/86/100
• Flatness: 0.01mm
• Parallelism: 0.01mm
• Repeated Positioning Accuracy: ±0.005mm

KS Series Characteristics

• High – End Components Requirement: Demands high – quality linear guides and ball screws. Such high – standard components are challenging to produce, with few Chinese factories being able to meet the specifications.
• High – Integration Design: It is a highly integrated product combining screws and guide rails. The accuracy is ensured by machine – tool manufacturing, eliminating manual assembly errors. This results in higher accuracy compared to aluminum modules.
• Robust Steel Body: Constructed with a steel body, it offers high strength and a low risk of damage. Its strength grade is KS > GCS > YSC.
• Space – Saving Design: Compact and lightweight, it saves significant installation space, which is beneficial for applications with limited space.
• Ease of Use: As standard products, they are easy to use, facilitating quick integration into various systems.
• Fast Delivery and Low Noise: Ensures fast delivery times and operates with low noise, reducing disruptions in working environments.
• Strong Carrying Capacity: Capable of handling heavy loads, making it suitable for applications that require substantial weight support.
• High – Speed Transplanting: Enables high – speed transplanting operations, improving the efficiency of production processes.
• Design Optimization: Features an optimized design with an integrated structure and fewer accessories, simplifying the overall system.
• High Accuracy and Stiffness: Maintains high accuracy and stiffness during operation, ensuring reliable and precise linear motion.

KS Series Motor Connection

• Direct Motor Connection: The connection mode is unit + coupling + motor mount, allowing for direct connection with the motor.
• Direction – Changing Connection: Another option is unit + connect part, which enables changing the direction of the module.
