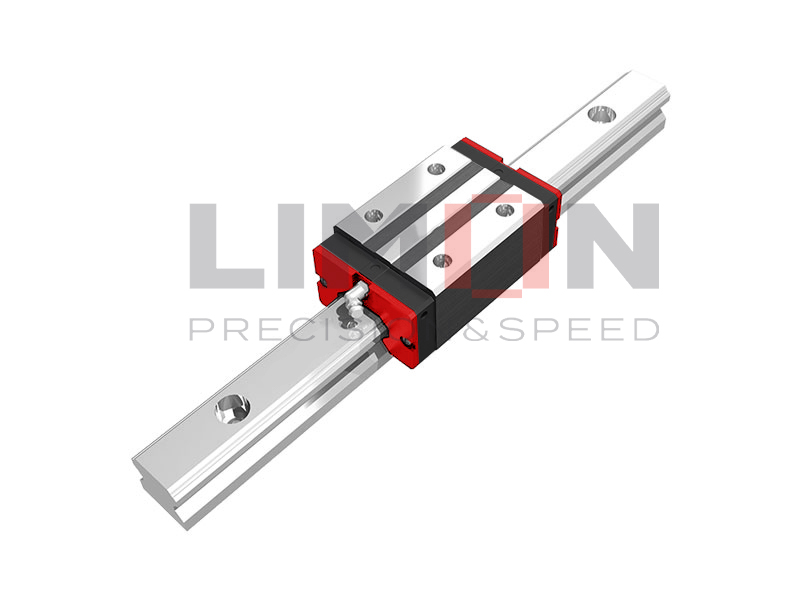

H Series-Heave Load Type Linear Guideways
Heave Load Type Linear Guideways
HW-CB/HW-HB Linear Guideways
H Series
Applicable industries of H series:
Grinding,Milling, and Drilling machine,Lathe,Electric discharge machine, Wire cutting machine, Wood cutting machine,Precision measure equipment, Machine center
(1)Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. H series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.
(2)Interchangeability
Because of precision dimensional control, the dimensional tolerance of H series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3)High rigidity in all four directions
Because of the four-row design, the H series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.
Characteristic:
- Precision: C, H, P.
- Size: 15~45.
- Lubrication block & 6 meter guideway available.
- Various accessories, KK, DD, ZZ.
- Korean material & Taiwan equipment.
- Strict quality control.
Quote Now
Download Catalog
Description
Model NO. | Dimensions of | Dimensions of | Dimensions of | Mounting Bolt for Rail | Basic Dynamic Load Rating | Basic Static Load Rating | Static Rated Moment | Weight | |||||||||||||||||||||||||
MR | MP | MY | Block | Rail | |||||||||||||||||||||||||||||
H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | M | T | T1 | T2 | H2 | H3 | WR | HR | D | h | d | P | E | (mm) | C(kN) | C0(kN) | ||||||
HW15CB | 24 | 4.3 | 16 | 47 | 38 | 4.5 | 30 | 39.4 | 61.4 | 8 | 4.85 | 5.3 | ø4.5 | 6 | 8.9 | 6.95 | 3.95 | 3.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4x16 | 14.7 | 23.47 | 0.12 | 0.10 | 0.10 | 0.17 | 1.45 |
HW20CB | 30 | 4.6 | 21.5 | 63 | 53 | 5 | 40 | 50.5 | 77.5 | 10.25 | 6 | 12 | ø6 | 8 | 10 | 9.5 | 6 | 6 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5x16 | 27.1 | 36.68 | 0.27 | 0.20 | 0.20 | 0.40 | 2.21 |
HW20HB | 65.2 | 92.2 | 17.6 | 32.7 | 47.96 | 0.35 | 0.35 | 0.35 | 0.52 | ||||||||||||||||||||||||
HW25CB | 36 | 5.5 | 23.5 | 70 | 57 | 6.5 | 45 | 58 | 84 | 10.7 | 6 | 12 | ø7 | 8 | 14 | 10 | 5 | 5 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 34.9 | 52.82 | 0.42 | 0.33 | 0.33 | 0.59 | 3.21 |
HW25HB | 78.6 | 104.6 | 21 | 42.2 | 69.07 | 0.56 | 0.57 | 0.57 | 0.80 | ||||||||||||||||||||||||
HW30CB | 42 | 6 | 31 | 90 | 72 | 9 | 52 | 70 | 97.4 | 14.25 | 6 | 12 | ø9 | 8.5 | 16 | 10 | 6.5 | 10.8 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | M8x25 | 48.5 | 71.87 | 0.66 | 0.53 | 0.53 | 1.09 | 4.47 |
HW30HB | 93 | 120.4 | 25.75 | 58.6 | 93.99 | 0.88 | 0.92 | 0.92 | 1.44 | ||||||||||||||||||||||||
HW35CB | 48 | 7.5 | 33 | 100 | 82 | 9 | 62 | 80 | 112.4 | 14.6 | 7 | 12 | ø9 | 10.1 | 18 | 13 | 9 | 12.6 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | M8x25 | 64.6 | 93.88 | 1.16 | 0.81 | 0.81 | 1.56 | 6.30 |
HW35HB | 105.8 | 138.2 | 27.5 | 77.9 | 122.77 | 1.54 | 1.40 | 1.40 | 2.06 | ||||||||||||||||||||||||
HW45CB | 60 | 9.5 | 37.5 | 120 | 100 | 10 | 80 | 97 | 139.4 | 13 | 10 | 12.9 | ø11 | 15.1 | 22 | 15 | 8.5 | 20.5 | 45 | 38 | 20 | 17 | 14 | 105 | 22.5 | M12x35 | 103.8 | 146.71 | 1.98 | 1.55 | 1.55 | 2.79 | 10.41 |
HW45HB | 128.8 | 171.2 | 28.9 | 125.3 | 191.85 | 2.63 | 2.68 | 2.68 | 3.69 | ||||||||||||||||||||||||
HW55CB | 70 | 13 | 43.5 | 140 | 116 | 12 | 95 | 117.7 | 166.7 | 17.35 | 11 | 12.9 | ø14 | 17.5 | 26.5 | 17 | 12 | 19 | 53 | 44 | 23 | 20 | 16 | 120 | 30 | M14x45 | 153.2 | 211.23 | 3.69 | 2.64 | 2.64 | 4.52 | 15.08 |
HW55HB | 155.8 | 204.8 | 36.4 | 184.9 | 276.23 | 4.88 | 4.57 | 4.57 | 5.96 | ||||||||||||||||||||||||
HW65CB | 90 | 15 | 53.5 | 170 | 142 | 14 | 110 | 144.2 | 200.2 | 23.1 | 14 | 12.9 | ø16 | 25 | 37.5 | 23 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 150 | 35 | M16x50 | 213.2 | 287.48 | 6.65 | 4.27 | 4.27 | 9.17 | 21.18 |
HW65HB | 203.6 | 259.6 | 52.8 | 277.8 | 420.17 | 9.38 | 7.38 | 7.38 | 12.89 | ||||||||||||||||||||||||
| Note:1kgf = 9.81N | |||||||||||||||||||||||||||||||||
