Ball Screw Driven Linear Actuator – Y Series

Ball Screw Driven Linear Actuator

Y Series

Ball Screw Driven Linear Actuator

Open type

Classification: Open type
Drive type: Ball Screw
Sealed type: General environment, semi-sealed
Repetitive accuracy: ±0.01mm
Strong carrying capacity
High-speed transplanting
Easy assembly and operation
Long stroke can be customized

Quote Now

    Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

    Download Catalog

      Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

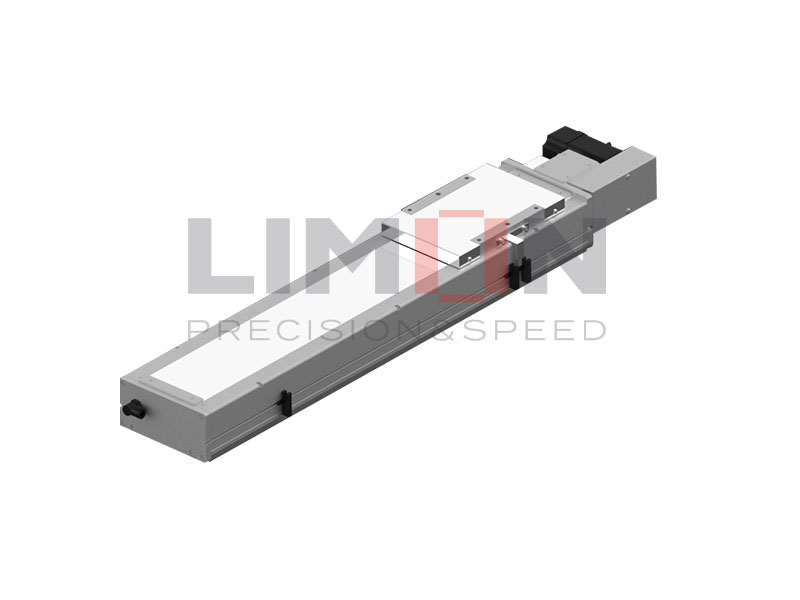

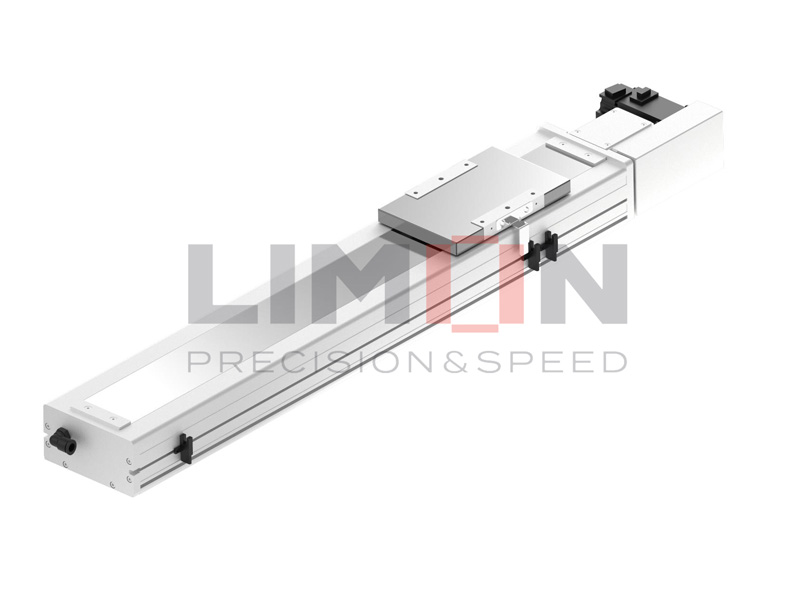

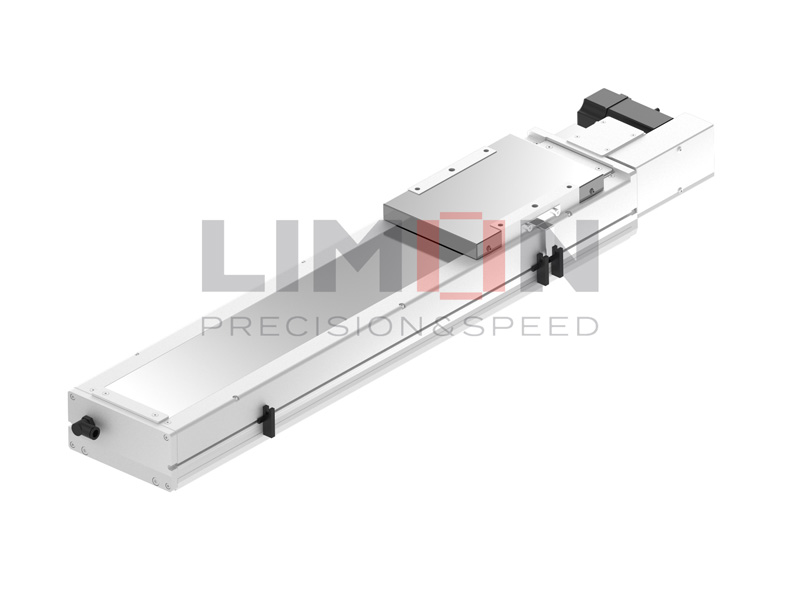

      Close type

      Classification: Close type
      Drive type: Ball Screw
      Sealed type: Clean room environment, fully enclosed
      Repetitive accuracy: ±0.01mm
      Strong carrying capacity
      High-speed transplanting
      Easy assembly and operation
      Long stroke can be customized

      Quote Now

        Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

        Download Catalog

          Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

          Description

          Overview

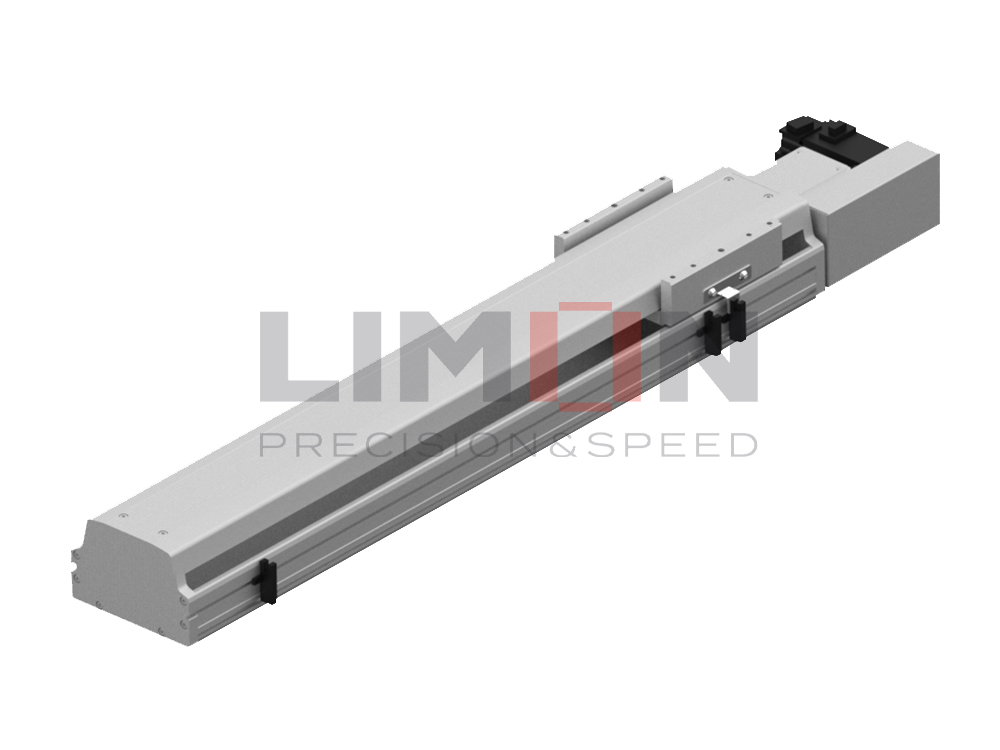

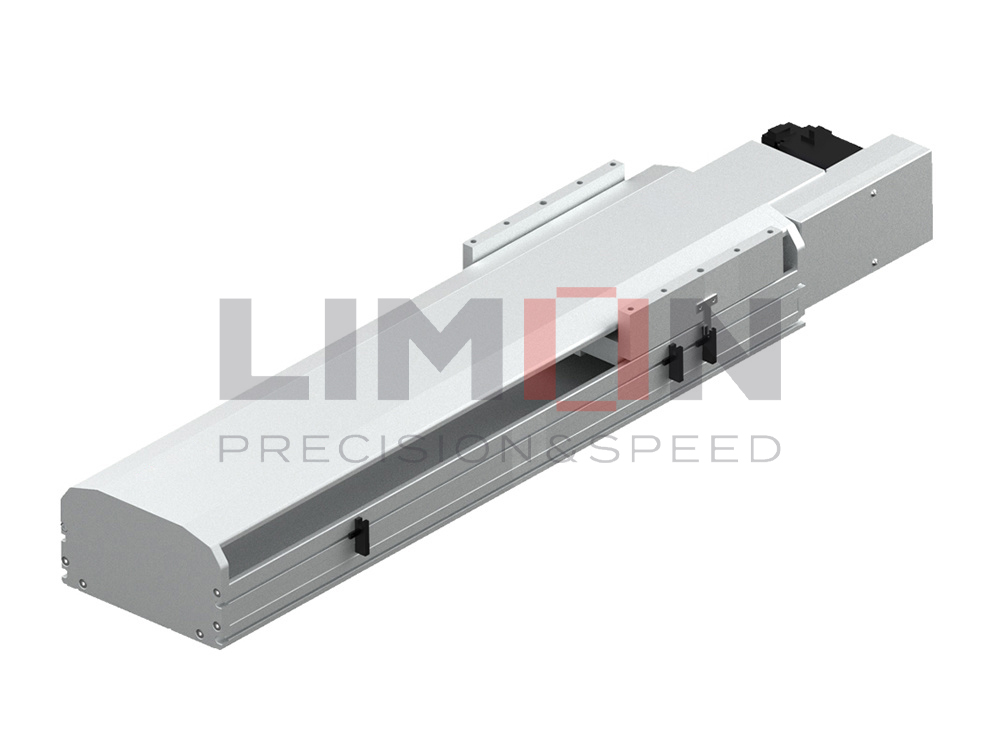

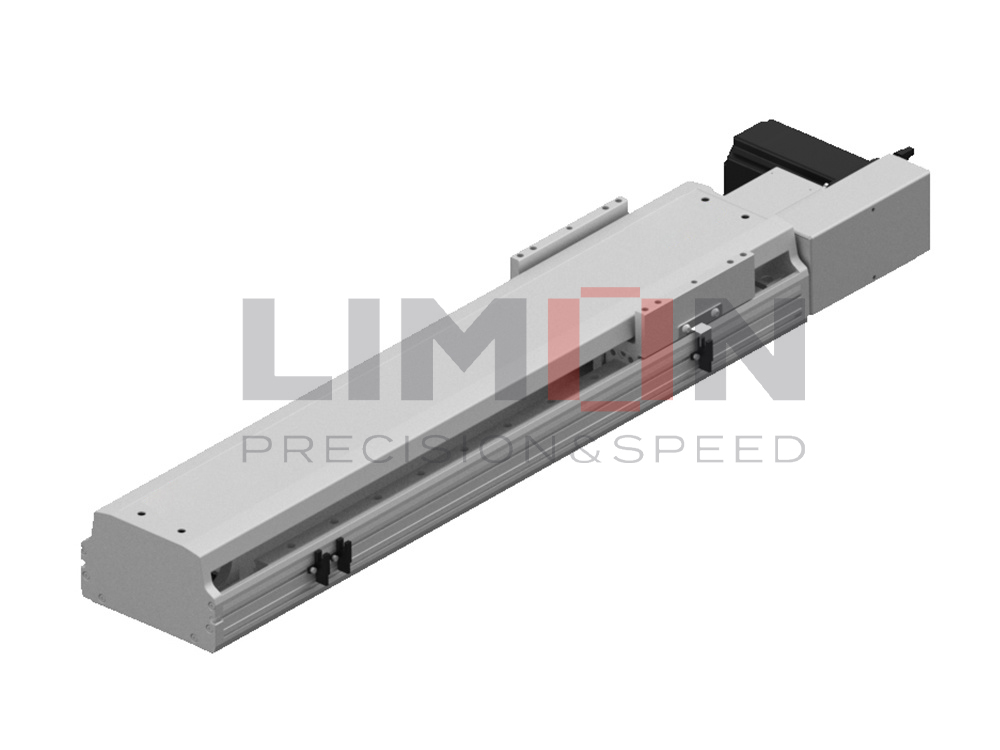

          YTO is a belt – driven linear actuator series. It corresponds to TOYO’s ETB series from Taiwan. Engineered for high – performance linear motion, YTO is designed to meet the demands of applications requiring fast speed, long stroke, and large load capabilities.

          Basic Info

          • Model Numbers: YTO135, YTO170, YTO220
          • Repeat Positioning Accuracy: ±0.05mm
          • Stroke and Speed: The longest stroke can reach 12m, and the highest speed is 5m/s
          • Belt Type: Characterized by fast speed, long stroke, and large load – bearing capacity, making it suitable for handling and transplanting tasks

          Characteristics

          • Belt Options: Offers various belt types such as PU belt, timing belt, etc. The PU belt is suitable for general environments, being small in size and large in load – bearing.
          • Tension Adjustment: Equipped with a belt tension adjustment mechanism, ensuring stable operation and prolonging the service life of the belt.
          • High Carrying Capacity: The double – guide structure provides good rigidity, stability, and self – aligning ability. The integral processing of the structure and body ensures high rigidity and durability.
          • Motor Compatibility: Can match motors from different brands and models, adjusting the driving force as required. Different motor connection methods are available:
            • D01 – D06: Connection mode is unit + reduce part + motor
            • D07 – D09: Connection mode is unit + coupling + motor flange + motor/reducer

          Industry Applications

          YTO linear actuators are ideal for industries that require high – speed, long – stroke, and large – load linear motion, such as material handling systems, automated production lines for large – scale product assembly, and robotic transplanting operations in manufacturing plants. Its precision and load – bearing capacity make it a reliable choice for applications where efficient and accurate linear movement is crucial.

          Frequently Asked Questions

          A: We pay great attention with the quality of our products and we have many quality certificates: ISO9001, ISO14001, CE European Union certification certificate, ROHS certificate etc.

          A: Yes, sample is available. If you are interested, you can contact us by e-mail ([email protected]) to get more photos and information.

          A: Normal order delivery of linear motion products is generally controlled within 1-2 months.
          Normal order delivery for linear unit and higher precision products is generally controlled within 7-15 working days.

          A: Our cooperating transportation companies include DHL, TNT, UPS, etc. Sea transportation, air transportation and express delivery are all available. If you have a specific carrier, please let us know when you place the order.

          A: You can contact us by e-mail ([email protected] ) and we will recommend the most suitable project according to your requirements.

          A: T/T in advance.

          A: LIMON agent in Asia: Singapore, Japan, India
          LIMON agent in Europe: Hungary, Turkey, Israel
          LIMON agent in South America: Brazil

          A: LIMON do quite well in Europe, Asia and South America, also China is a potential market for us. Now LIMON’s distributors have covered more than 32 country and regions.

          A: We are really looking forward to having you as a solid partner of LIMON. Please contact us by e-mail ([email protected] ) , we can start talk and get to know more about each other.
