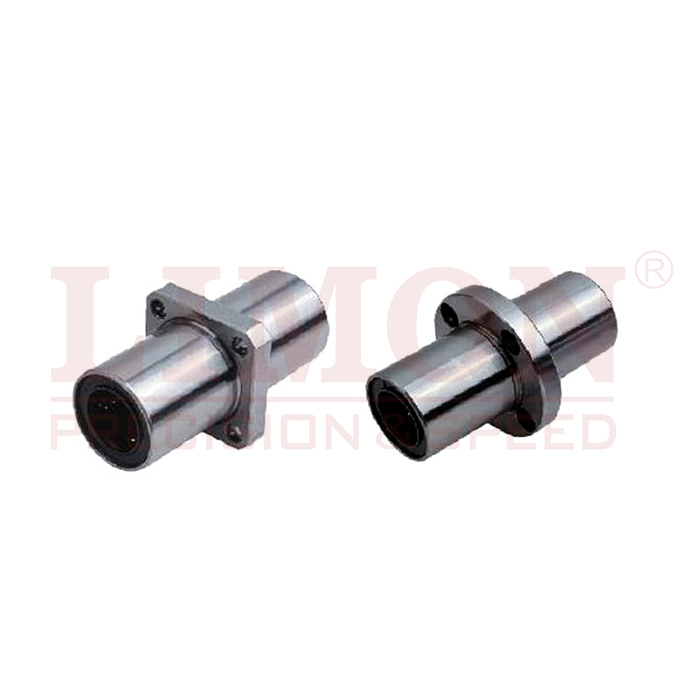

LMF/KC Series - Linear Bearing

- Linear Bearing -


LMF/KC Series

LMF/KC Series

Linear bearings are bearing elements for translation type motion. As in the case of rotary bearings, a distinction is drawn as to whether the forces occurring are transmitted by means of rolling or sliding elements. Each linear design has particular characteristics that make it especially suitable for particular bearing arrangements.

1. enable high precision linear motion on round shafts
2. sustain heavy loads with low noise and high stiffness
3. perform under almost any environmental conditions and load capacities to satisfy a wide range applications

Linear bearings are widely used in electronic equipment, pull tester and the digital three-dimensional coordinate measuring device, such as precision equipment, as well as multi-axis machine tools, press, tool grinder, automatic gas cutting machine, printer, card sorting machine, food packaging machines and other industrial machinery sliding components.


Description

Data Sheet of Linear Bearings LMF/KC Series



Part No.

Main Dimensions and Tolerance

Eccen-tricity

Basic Load Rating CN

Basic Load Rating CoN

Weight (g)



Seal Type

Ball Circuit

dr (mm)

Tolerance (μm)

D (mm)

Tolerance (μm)

L (mm)

Tolerance (μm)

I (mm)

D1 (mm)

K (mm)

H (mm)

PCD (mm)

d1xd2xh (mm)



LMFC6UU

LMKC6UU

4

6

0
-10

12

0
-13

35

±300

15

28

22

5

20

3.5x6x3.1

15

323

529

31



LMFC8UU

LMKC8UU

4

8

15

45

20

32

25

5

24

3.5x6x3.1

431

784

51

LMFC10UU

☆LMKC10UU

4

10

19

0-
16

55

-200

24.5

40

30

6

29

4.5x7.5x4.1

588

1100

98

LMFC12UU

☆LMKC12UU

4

12

21

57

25.5

42

32

6

32

4.5x7.5x4.1

813

1570

110



LMFC13UU

LMKC13UU

4

13

23

61

27.5

43

34

6

33

4.5x7.5x4.1

813

1570

130



LMFC16UU

LMKC16UU

5

16

28

70

-300

32

48

37

6

38

4.5x7.5x4.1

1230

2350

190

LMFC20UU

☆LMKC20UU

5

20

0
-12

32

0
-19

80

36

54

42

8

43

5.5x9x5.1

20

1400

2740

260

LMFC25UU

☆LMKC25UU

6

25

40

112

52

62

50

8

51

5.5x9x5.1

1560

3140

540

LMFC30UU

☆LMKC3OUU

6

30

45

123

56.5

74

58

10

60

6.6x11x6.1

2490

5490

680



LMFC35UU

LMKC35UU

6

35

0
-45

52

0
-22

135

62.5

82

64

10

67

6.6x11x6.1

25

2650

6270

1020

LMFC40UU

☆LMKC40UU

6

40

60

151

69

96

75

13

78

9x14x8.1

3430

8040

1570



LMFC50UU

LMKC50UU

6

50

80

192

89.5

116

92

13

98

9x14x8.1

6080

15900

3600



LMFC60UU

LMKC60UU

6

60

0
-20

90

0
-25

209

-400

95.5

134

106

18

112

11x17x11.1

30

7550

20000

4500



Note : ☆ means steel retainer is available.
