KBA Series – Linear Bearing
Linear Bearing
KBA Series – Linear Bearing
KBA Series
Our standard aluminium slide units with metric dimension, have different series that can widely used in Asia, European and other countries.They have simple installation with screws, good interchangeability, high precision and rigidity, low friction, easy of replacement.

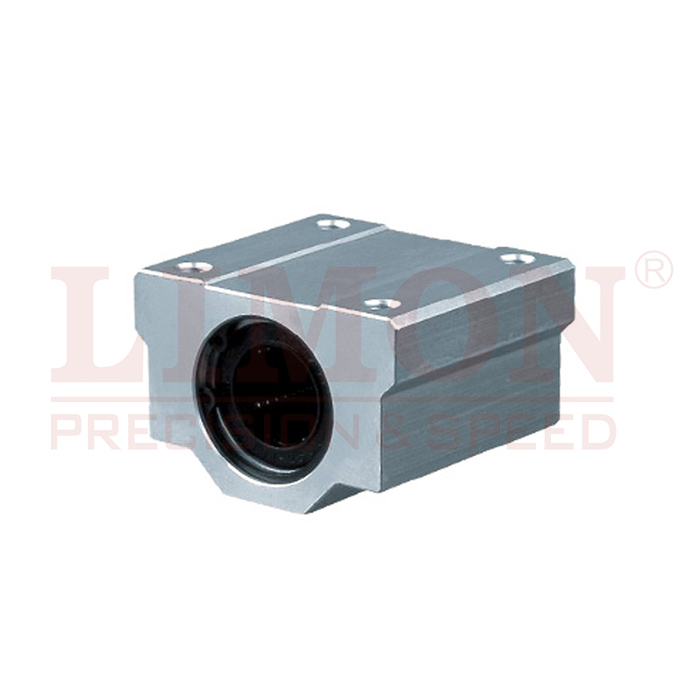

Sliding unit is special designed to convenient the assembly of linear bearing, greatly reduce the mechanical designer’s job. It consists of one standard type linear bearing and the aluminium housing, with pre-drilled mounting holes. We use premium grade raw material to make sure our quality at affordable rates, this ideal transmission component for linear motion movement, can be widely used in CNC machines, factory automation, industrial machines, etc. There is wide size range for option, models including (special size has to be customized).
Quote Now
Download Catalog
Description
Data Sheet of Linear Bearings KBA Series
| Part No. | Main Dimensions (mm) | Weight (g) | ||||||||||||
| Seal Type | Shaft Diameter | h | D | W | L | H | G | T | B | C | E | S1xe | S2 | |
| KBA10UU | 10 | 13 | 20 | 40 | 35 | 26 | 21 | 8 | 28 | 21 | 6 | M5x12 | 4.3 | 92 |
| KBA12UU | 12 | 15 | 22 | 44 | 39 | 30 | 24.5 | 8 | 33 | 26 | 5.5 | M5x12 | 4.3 | 120 |
| KBA16UU | 16 | 19 | 25 | 50 | 44 | 38.5 | 32.5 | 9 | 36 | 34 | 7 | M5x12 | 4.3 | 200 |
| KBA20UU | 20 | 21 | 27 | 54 | 53 | 41 | 35 | 11 | 40 | 40 | 7 | M6x12 | 5.2 | 270 |
| KBA25UU | 25 | 26 | 38 | 76 | 67 | 51.5 | 42 | 12 | 54 | 50 | 11 | M8x18 | 7 | 600 |
| KBA30UU | 30 | 30 | 39 | 78 | 76 | 59.5 | 49 | 15 | 58 | 58 | 10 | M8x18 | 7 | 776 |
| KBA40UU | 40 | 40 | 51 | 102 | 90 | 78 | 62 | 20 | 80 | 60 | 11 | M10x25 | 8.7 | 1590 |
| KBA50UU | 50 | 52 | 61 | 122 | 110 | 102 | 80 | 25 | 100 | 80 | 11 | M10x25 | 8.7 | 3340 |
| KBA60UU | 60 | 58 | 66 | 132 | 137 | 114 | 94 | 30 | 108 | 90 | 12 | M12x25 | 10.7 | 4800 |
Data Sheet of Linear Bearings KBA_S Series
| Part No. | Main Dimensions (mm) | Basic Load Rating CN | Basic Load Rating CoN | Weight (g) | |||||||||||
| h | D | W | H | G | A | B | E | Slxe | S2 | C | L | ||||
| KBA8SUU | 11 | 17 | 34 | 22 | 18 | 6 | 24 | 5 | M4X8 | 3.4 | 7.2 | 14.4 | 274 | 392 | 25 |
| KBA12SUU | 15 | 22 | 44 | 30 | 24.5 | 8 | 33 | 5.5 | M5X12 | 4.3 | 10.4 | 20.8 | 510 | 784 | 65 |
| KBA16SUU | 19 | 25 | 50 | 38.5 | 32.5 | 9 | 36 | 7 | M5X12 | 4.3 | 11.2 | 22.4 | 774 | 1180 | 100 |
| KBA20SUU | 21 | 27 | 54 | 41 | 35 | 11 | 40 | 7 | M6X12 | 5.2 | 14.5 | 29 | 882 | 1370 | 148 |
| KBA25SUU | 26 | 38 | 76 | 51.5 | 42 | 12 | 54 | 11 | M8X18 | 7 | 20.45 | 40.9 | 980 | 1570 | 368 |
| KBA30SUU | 30 | 39 | 78 | 59.5 | 49 | 15 | 58 | 10 | M8X18 | 7 | 24.45 | 48.9 | 1574 | 2740 | 500 |
| KBA40SUU | 40 | 51 | 102 | 78 | 62 | 20 | 80 | 11 | M10X25 | 8.7 | 28.2 | 56.4 | 2160 | 4020 | 1000 |
| KBA50SUU | 52 | 61 | 122 | 102 | 80 | 25 | 100 | 11 | M10X25 | 8.7 | 36.2 | 72.4 | 3820 | 7940 | 2205 |
Data Sheet of Linear Bearings KBA_L Series
| Part No. | Main Dimensions (mm) | Weight (g) | ||||||||||||
| Seal Type | Shaft Diameter | h | D | W | L | H | G | T | B | C | E | S1xe | S2 | |
| KBA10LUU | 10 | 13 | 20 | 40 | 68 | 26 | 21 | 8 | 28 | 46 | 6 | M5x12 | 4.3 | 180 |
| KBA12LUU | 12 | 15 | 22 | 44 | 77 | 30 | 24.5 | 8 | 33 | 64 | 5.5 | M5x12 | 4.3 | 237 |
| KBA16LUU | 16 | 19 | 25 | 50 | 89 | 38.5 | 32.5 | 9 | 36 | 79 | 7 | M5x12 | 4.3 | 405 |
| KBA20LUU | 20 | 21 | 27 | 54 | 100 | 41 | 35 | 11 | 40 | 90 | 7 | M6x12 | 5.2 | 510 |
| KBA25LUU | 25 | 26 | 38 | 76 | 136 | 51.5 | 42 | 12 | 54 | 119 | 11 | M8x18 | 7 | 1220 |
| KBA30LUU | 30 | 30 | 39 | 78 | 154 | 59.5 | 49 | 15 | 58 | 132 | 10 | M8x18 | 7 | 1580 |
| KBA40LUU | 40 | 40 | 51 | 102 | 180 | 78 | 62 | 20 | 80 | 150 | 11 | M10x25 | 8.7 | 3180 |
| KBA50LUU | 50 | 52 | 61 | 122 | 230 | 102 | 80 | 25 | 100 | 200 | 11 | M10x25 | 8.7 | 6990 |
